A-A-52428 Reflector, Indicating, ClearanceThis CID covers a clearance indicating reflector assembly, also referred to herein as reflector, which is comprised of a red or amber reflecting element (lens), mounted in a one or two piece metal flanged housing (see figure 1). This reflector is used on vehicles to give an indication of presence to an approaching driver by reflected light from the headlamps on the approaching vehicle. Reflectors may also be used on structures or road hazards for supplementary night parking.

Pages 1 - 2 - 3 - 4 - 5

A-A-52428A

2.1.2.1 Backing. Backing material for flanged housing made of two-piece construction shall be made of the same material used for the flanged housing and treated to resist rusting/corrosion (see 2.5).

2.2 Design and construction. Design and construction of the reflector shall be in accordance with figure 1.

PIN	Lens color	Former MS part number
AA52428-1	Red	MS35387-1
AA52428-2	Amber	MS35387-2

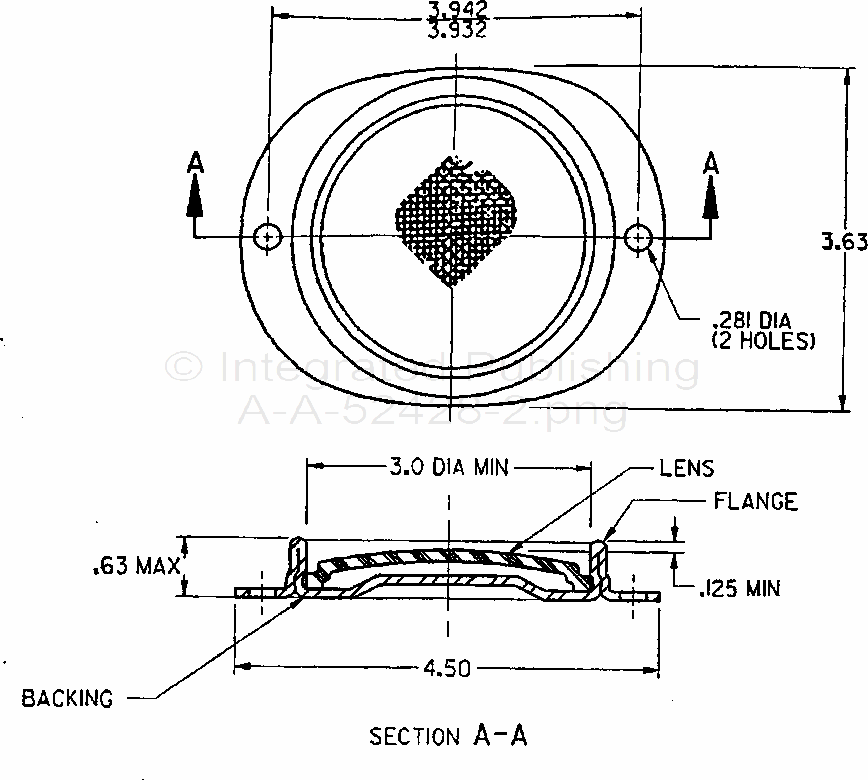

FIGURE 1. Reflector, indicating clearance.
