3. REQUIREMENTS

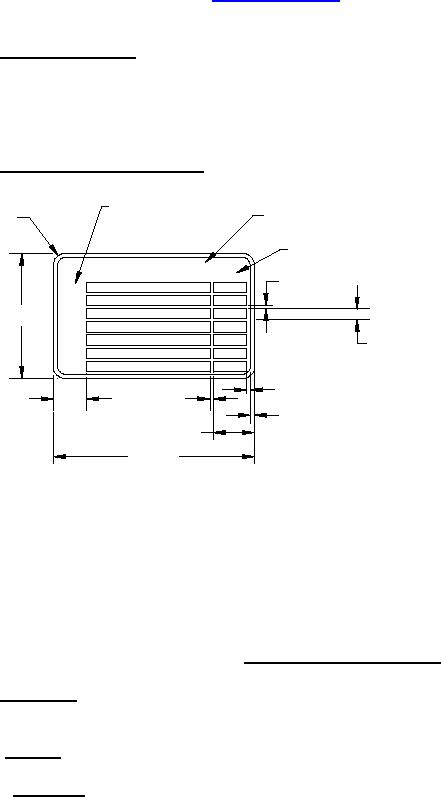

3.1 Individual identification plates. Individual identification shall be in accordance with figure 1 or as
specified in the contract or order (see 6.2).
.094 LETTERS TYP
R .094
.125 LETTERS
TYP
.078 LETTERS TYP
MM
MODIFICATION APPLIED
INCH
IDENTIFICATION
DATE
.031 TYP
.79
.031
MWO
1.98
.078
MWO
1.750
MWO
2.39
.094
MWO
3.18
.125
.156 TYP
MWO
3.96
.156
MWO
12.70
MWO
.500
44.45
1.750
.031
.500
.031
76.20
3.000
.031 TYP
.500
3.000
Notes:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest .01 mm) are given for general information only and are based upon 1
inch = 25.4 mm.
3. Tolerances shall be ± .0156 (.40 mm) inch.
4. "Modification applied" shall be on the top line and "identification" and "Date" on the second line as
shown, using letters .12 and .08 high minimum respectively.
5. Background color shall be black in accordance with table II.
FIGURE 1. Individual identification plate.
3.2 First article. When specified (see 6.2), a sample shall be subjected to first article inspection (see 6.3)
in accordance with 4.3.
3.3 Material.
3.3.1 Aluminum. Identification plates shall be manufactured from a base material of high grade
aluminum alloy conforming to SAE-QQ-A-250/1 and the thickness requirement specified in 3.4.1.
